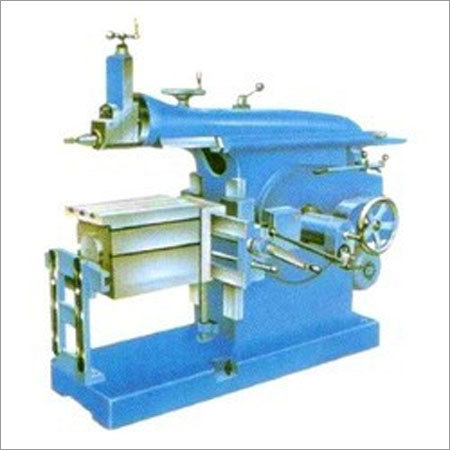

Shapper Machine

Shapper Machine
Shapper Machine
Product Code : HM-06
Brand Name : HETAL MACHINE
Product Description

Available in four different models, this Shaper Machine is ideal for cutting medium as well as small workpiece within a specific time. With having thorough knowledge on various requirements of drilling industry, we have emerged as a Gujarat based renowned manufacturer and exporter of Shapper Machine. The advanced design of this machine is useful for transforming liner motion into circular motion during cutting procedure. Easy to operate, this machine is known f or its 12â€Â to 30â€Â size range and capacity to deivery14 to 32 strokes. The width of its Ram ranges between 8.1/2" to 12.1/2".

Specifications:

Model

AESM-12

AESM-18

AESM-24

AESM-30

AESM-36

Machine Size

12"

18"

24"

30"

36"

Maximum Stroke

14"

20"

26"

32"

38"

Len of Ram

26"

36"

50"

58"

66"

Max. Dist. of Table to Ram

9"

15"

19"

20"

20"

Min. Dist. of Table to Ram

1/2"

2"

2"

2"

2"

Max. Vertical travel to tool slide

5"

4"

7"

7"

7"

Len. and width of table top

12" x 9"

18" x 12"

24" x 15"

30.1/2" x 16 "

36" x 18"

Len and width of table slide

24" x 10"

30" x 11"

37.1/2" x 12

44" x 13"

48" x 14"

Len of cross slide

24"

30"

37.1/2" x 12"

44" x 13"

48" x 14"

Width of Ram

8.1/2"

10"

12"

12.1/2"

13"

No. of Speeds

4"

3"

4"

4"

4"

HP Required (1440)

1"

2"

2"

3"

5"
