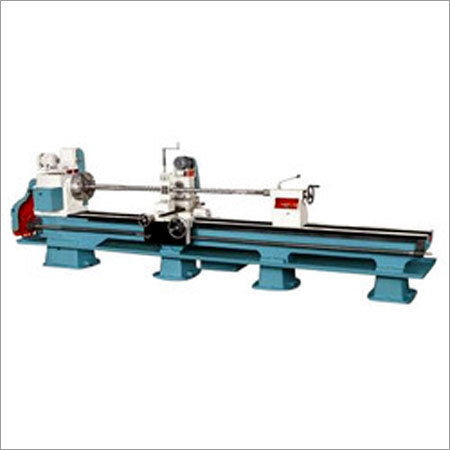

Thread Milling Machine

Thread Milling Machine
Thread Milling Machine
Product Code : HM-02
Brand Name : HETAL MACHINE
Product Description

We would like to introduce ourselves as a distinguished manufacturer and exporter of premium quality Thread Milling Machine. The Thread Milling Machine is widely used for processing alloy steel, carbon steel and non ferrous metals. It consists of 3 ho spindle motor with ac variable frequency drive, 2 hp cutter head motor, dog chuck, coolant pump and tank, spindle sleeve, chuck plate and electric panel board. We also provide additional accessories like machine lamp and true chuck with this machine. Rugged construction, long service life and maintenance free operation are some of its special features.

Specifications:

Bed Length 1000 to 10000 mm

Bed Width 375 / 450 mm Min./Max.

Job Diameter 20 to 300 mm

Admit Between Center 300 to 9000 mm

Spindle Bore 100 mm

Main Spindle RPM 0.1 to 1 RPM

Longitudinal Feeds 0.1 to 200 mm

Main Spindle Motor 3 HP

Milling Head Capacity 25 HSS to 40 mm

Carbide Milling Head Speed 30 mtr./min. to 90 mtr./min.

Milling Head RPM 300 & 500 RPM

Milling Head Nose ISO-40

Milling Head Motor 2 HP Min./Max.

Pitch 20 to 300 mm

Taper Turning Attachment 300 to 9000 mm

Spindle Sleeve (Taper Bore) MT-4 / MT-5

Lead Screw Diameter & Pitch 50 mm / 2TPI

Number of Multistarts 1440

Multistarts Accuracy 0.15 degree

Tail Stock Spindle Diameter 50 / 75 mm

Standard Accessories:

Main Spindle Motor 3 H.P with ac Variable Frequency Drive

Cutter Head Motor 2 H.P.

Steady Rest

Taper Turning Device

Dog Chuck

Coolent Pump with Tank

Chuck Plate

Spindle Sleeve

2 nos. Dead Center

Change Gear Set for inch & mm

Electric Panel Board


Optional Accessories:

  • True Chuck
  • Machine Lamp
